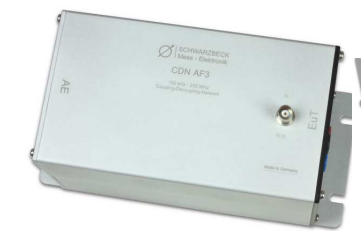

Coupling Decoupling Network Schwarzbeck CDN AF2,CDN AF3,CDN AF4,CDN AF6,CDN AF8

I Giới thiệu Schwarzbeck CDN AF2,CDN AF3,CDN AF4,CDN AF6,CDN AF8

Frequency range: 150 kHz … 230 MHz

Common mode
impedance:150 kHz – 24 MHz: 150 Ω ±20 Ω
24 MHz–80 MHz: 150Ω +60Ω / -45 Ω
80 MHz – 230 MHz: 150 Ω ±60 Ω

Max. RF-test voltage (emf): 30 V

RF-input-power: 6 W (continuous)

RF-input connector: 50 Ω BNC (female)

Voltage division factor
RF-input – EuT-port: 9.5 dB
150 kHz – 80 MHz: ±1dB
80 MHz – 230 MHz: +3 dB / – 2 dB

Input Voltage EuT (AE): 100 VAC / 150 VDC

Current rating: 4 A

Included accessories:
3 pin shorting bar: CA 3/4
(2 units included by default),CA 4/4
(2 units included by default),CA 6/4
(2 units included by default),CA 8/4
(2 units included by default),CA 2/4
(2 units included by default)
