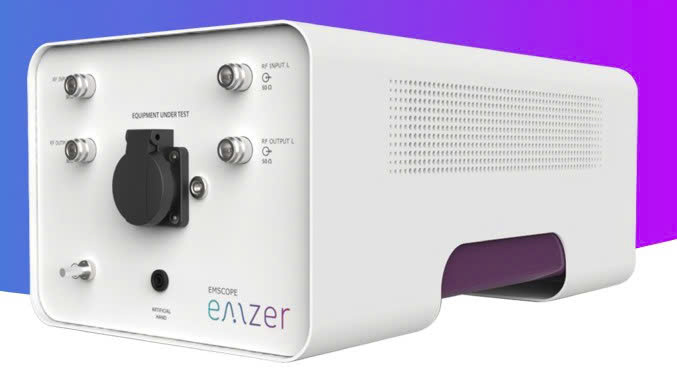

Emzer EMI Receiver Emscope-RX4

I Introduction Emscope-RX4 :

EMSCOPE is a new double EMI-Test Receiver according to CISPR-16-1-1, which can be optionally integrated
with a 16-A LISN, that fully embodies the measurement of common and differential mode conducted emissions.

II Specification:

Standard for EMI test receiver / LISN According to CISPR 16-1-1 / 16-1-2 standards
Detectors Peak, quasi-peak and average
Type of measurements EMI (line and neutral) and Modal (common and differential mode) conducted emissions
Full spectrum measurement time Equal to the measurement dwell time, which is totally configurable from 1 s to 15 s
Resolution bandwidth filters 200 Hz, 9 kHz, 120 kHz (CISPR); 1 kHz, 10 kHz (MIL)
Integrated circuits Pre-amplifiers and pulse limiters
Internal LISN Single Phase 16A, 50 Ω || (50 μH + 5 Ω) / 250 μH
Maximum continuous current/voltage 16 A @230 VAC / 300VAC- 325 VDC (socket dependent)
Power-supply operating frequency DC to 60 Hz. Universal range.
Artificial hand / connector type 510 Ω + 220 pF / 4 mm banana
Mains socket IEC C20

EMSCOPE RX4 150 kHz – 30
MHz
