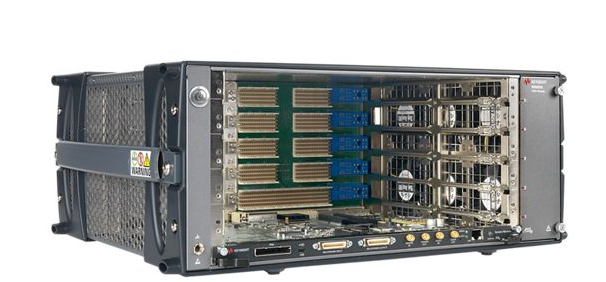

Keysight M9505A AXIe 5-Slot Chassis

I Keysight M9505A introduction :

The M9505A AXIe Chassis is fully compatible with the AXIe 1.0 specification. It includes an embedded system module (ESM) that does not take up an instrument slot. This system module performs the chassis management functions contained in the AXIe specification. Additionally, it provides PCI and LAN interfaces for connection to an external computer, external clock and trigger connectors, and Keysight-exclusive, inter-chassis synchronization connectors. The local bus implemented in the M9505A provides the maximum 62 pairs allowed by the AXIe specification. Combine the M9505A with the M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.

II M9505A Specification :

Applications

• Transportable applications (can also be rack-mounted)

Functionality

• 5 slots for AXIe instrument modules
• Embedded AXIe system module
• High Power, 200W Cooling per slot

Performance characteristics

• Gigabit LAN connection to each module slot
• Gen 2 PCIe x8 interface to system controller provide up to a 4 GB/s data rate from external controller
• Gen 2 PCIe x4 links to each module slot (maximum 2 GB/s data rate)
