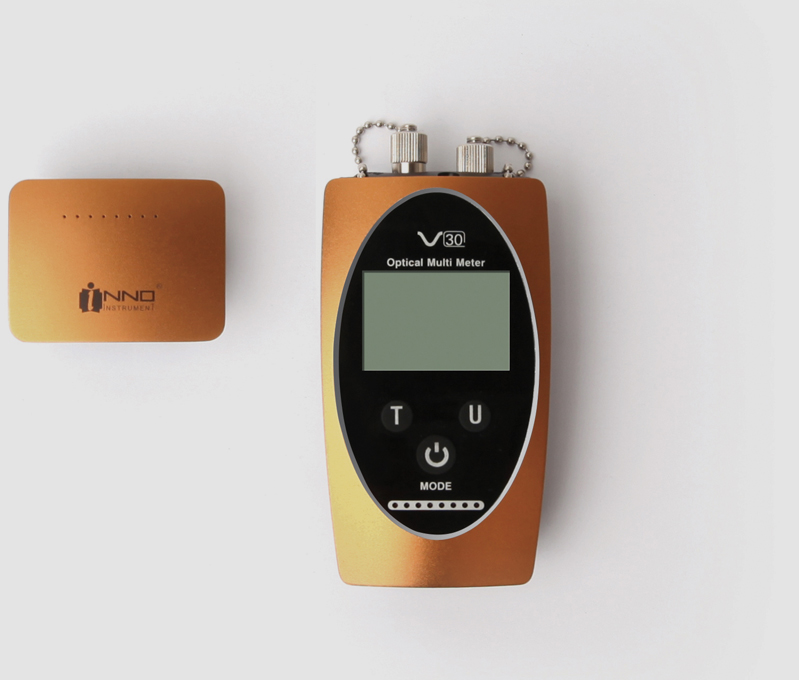

Optical Multi Meter V30


THREE Useful Functions in ONE
  • Optical Power Meter (OPM)
  • Visual Fault Locator (VFL)
  • LAN & Telephone Line Test
Description

The V30 network optical multi meter is easy to operate with multiple functions such as OPM, VFL and LAN & Telephone Line Test. The V30 is designed to use at the construction fields for optical cable maintenance, telecommunications companies and data centers.


Catalogue

Optical Multi Meter V30

    Vui lòng để lại thông tin liên hệ

    THÔNG TIN SẢN PHẨM

    Optical Power Meter (OPM) Sensor type InGaAs
    Fiber port type SC, FC, ST (Interchangeable)
    Calibration wavelength 850 / 1300 / 1310 / 1490 / 1550 / 1625nm
    Measuring range +6 to -70dBm
    Accuracy ±0.02dB
    Linearity ±2%
    Display unit dBm, mW, uW
    Visual Fault Locator (VFL) Output power 1mW
    Fiber port type 2.5mm ferrule type
    Laser safety level Class 2
    Wavelength 650nm ± 20nm
    Output mode Continuous / 2Hz flashing lasers
    Reverse current protection Available
    Network cable / Phone line test Port type RJ45 / RJ11
    Applicable cable / Telephone line UTP CAT-5 / CAT-5e (2/4/6 core phone lines)
    Maximum measuring range 1Km
    Operating temperature / Storage temperature -10°C ~ +60°C / -20°C ~ +70°C
    Relative humidity < 90%, Non-condensation
    Main body weight / Acccessories weight 127.5g / 28.5g
    Main body size / Accessories size 124H x 60W x 35D mm / 40.3H x 54W x 27.2D mm
    Display Segment display: LCD 1.8in 40x28mm
    Battery 2 pieces of batteries (AA, 1.5V)
