Schwarzbeck Pulse Generators IGUU 2918

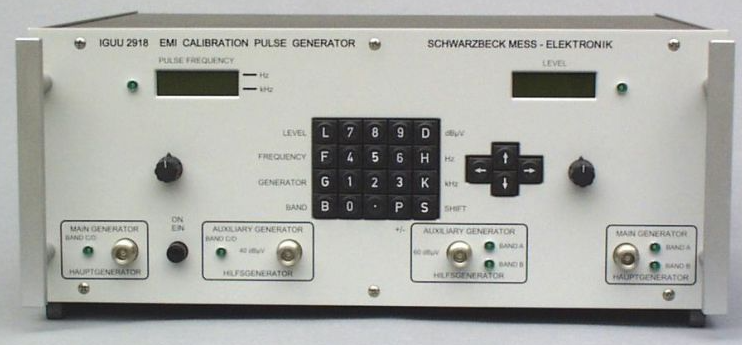

I IGUU 2918 :

Calibration-Pulse Generator

acc. CISPR 16

for Band A, B, C, D

(9 kHz-1000 MHz)

To calibrate the pulse

response of EMI receivers.

Pulse repetition frequency main generator 0.1 – 200 Hz (aux. generator up to 1 MHz) with IEEE-488 Interface.

IGUU 2916

Universal Calibration Pulse Generator

acc. CISPR 16 for Bands A, B, C, D

(9 kHz – 1000 MHz)

especially for EMI Receiver Tests

(Pulse weighting, Overload)

Signal generator

100 kHz, 1 MHz, 10 MHz, 100 MHz (60 dBµV)

Pulse Repetition Frequency

0.1 Hz – 200 Hz (20 kHz)

Output Level adjustable in 1 dB steps

GPIB-Interface.

IGUF 2910

Battery driven High Power Pulse Generator

Pulse Repetition Frequency 300 Hz

weighted CISPR Level 80 dbµV

(Quasipeak, 120 kHz IF-BW)

Broad band signal source

up to 300 (1000) MHz

w. 0.5 ns Pulses of 300 V at 50 Ohm

SG 9301

Spectrum Generator

30-1000 MHz

spectrum lines switchable 100 Hz – 1 MHz

N-female connector

charger ACS 110 required

main application:

reference radiator (antenna required e.g. UBAA 9114 with BBVU 9135)

SG 9302 C

Frequency range:	0.1 – 18 GHz
	Frequency error:	±1.5×10-6 (-20°C – +70°C)
	Connector:	N, 50 Ω
	Dimension BxHxT:	105 x 80 x 130 mm
	Typ. operation time:	8 h
	Power supply:	3.7 V, 2.6 Ah LiOn
	Weight (incl. battery):	430 g

SG 9303 – Comb Generator, 6 GHz

Frequency range:	1 GHz – 6 GHz
	Usable Frequency range:	10 MHz – 8 GHz
	Puls duration at 10 MHz:	ca. 60 ns
	Puls duration at 100 MHz:	ca. 7 ns
	Puls frequencies:	10 MHz, 100 MHz
	Connector:	N female 50 Ω
	Frequency error:	typ. 20 ppm
	Operating time:	8 h
	Weight:	690 g
