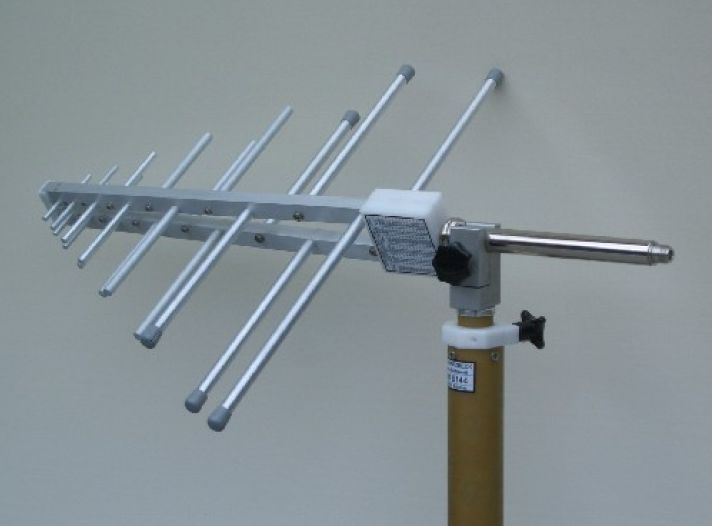

Schwarzbeck Standard LPDA
I Schwarzbeck Standard LPDA :
UHALP 9108A :
| Frequency Range: |
250 – 2400 MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.69 m |
|
Width: |
0.51 m |
|
Weight: |
1.35 kg |
|
Mounting: |
22 mm diameter tube |
VULP 9118A :
| Frequency Range: |
180 -1500 (2000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.98 m |
|
Width: |
0.75 m |
|
Weight: |
2 kg |
|
Mounting: |
22 mm diameter tube |
VULP 9118 B :
| Frequency Range: |
160 -1500 (2000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.09 m |
|
Width: |
0.89 m |
|
Weight: |
2.3 kg |
|
Mounting: |
22 mm diameter tube |
VULP 9118 C :
| Frequency Range: |
100 -1400 (2000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.39 m |
|
Width: |
1.20 m |
|
Weight: |
2.8 kg |
|
Mounting: |
22 mm diameter tube |
VULP 9118 D :
| Frequency Range: |
(80) 95 – 1500 (1800) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.59 m |
|
Width: |
1.65 m |
|
Weight: |
3.4 kg |
|
Mounting: |
Center Mount |
|
Recommended Adapter: |
KG 9201 |
VULP 9118 E :
| Frequency Range: |
75 (50) – 1500 MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.87 m |
|
Width: |
1.94 m |
|
Weight: |
3.8 kg |
|
Mounting: |
Center Mount |
|
Recommended Adapter |
KG 9201 |
VULP 9118 E special :
| Frequency Range: |
75 – 1500 (2000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.87 m |
|
Width: |
1.40 m |
|
Weight: |
4.5 kg |
|
Mounting: |
Center Mount |
|
Recommended Adapter |
KG 9201 |
VULP 9118 E High Power :
| Frequency Range: |
75 (50) – 1500 MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
5.4 kW (<100 MHz)
1.5 kW (<1 GHz) |
|
Connector: |
7/16 female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.87 m |
|
Width: |
1.94 m |
|
Weight: |
4.3 kg |
|
Mounting: |
Center Mount |
|
Recommended Adapter |
KG 9201 |
VULP 9118 F :
| Frequency Range: |
55 – 1800 MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
2.15 m |
|
Width: |
2.27 m |
|
Weight: |
|
|
Mounting: |
Center Mount |
VULP 9118 G
| Frequency Range: |
45 – 1500 MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
2.53 m |
|
Width: |
2.67 m |
|
Weight: |
|
|
Mounting: |
Center Mount |
VULP 9118 D/E/F/G special
Nearly identical gain as VULP 9118 D/E/F/G
but with reduced width.
Extra charge added to the basic model.
Special = folded longest elements.
VULP 9118 H
| Frequency Range: |
(26) 30 – 1500 (1800) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
4.85 m |
|
Width: |
5.12 m |
|
Height: |
0.38 m |
|
Weight: |
35 kg |
VUSLP 9111
| Frequency Range: |
(200) 230 – 2300 (4000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW (230 MHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.80 m |
|
Width: |
0.65 m |
|
Height: |
0.08 m |
|
Weight: |
1.6 kg |
VUSLP 9111 B
| Frequency Range: |
(180) 200 – 3000 (4000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW (<300 MHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.90 m |
|
Width: |
0.78 m |
|
Height: |
0.08 m |
|
Weight: |
1.7 kg |
VUSLP 9111 E :
| Frequency Range: |
(65) 70 – 3000 (4000) MHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
1 kW (<300 MHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
1.59 m |
|
Width: |
1.93 m |
|
Height: |
0.11 m |
|
Weight: |
3.1 kg |
|
Mounting: |
Center Mount |
|
Recommended Adapter: |
KG 9201 |
VUSLP 9111 F
| Nominal frequency range: |
80 MHz … 3 GHz |
|
Usable frequency range: |
75 MHz … 4 GHz |
|
Polarisation: |
linear |
|
Pattern type: |
directional |
|
Isotropic gain: |
typ. 6.3 dBi +/- 1.3 dB |
|
Antenna factor: |
4 … 35 dB/m |
|
Nominal impedance: |
50 Ω |
|
VSWR: |
typ. 20 dB |
|
Maxumum input power: |
1000 W (<300 MHz)
300 W (1 GHz) |
|
Connector: |
N-female |
|
Center mounting: |
3/8″ & M12 |
|
Width x Length x Thickness: |
1.34 x 1.53 x 0.11 m |
|
Weight: |
3.0 kg |
USLP 9142 :
| Frequency Range: |
0.7 – 5 (8) GHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
50 W |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
46 cm |
|
Width: |
20 cm |
|
Height: |
|
|
Weight: |
0.5 kg |
|
Mounting: |
22 mm tube |
|
Recommended Adapter: |
AA 9203 / AA 9202 |
USLP 9143 :
| Frequency Range: |
(250) 300 MHz – 7 (8) GHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
200 W (<500 MHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.69 m |
|
Width: |
0.55 m |
|
Height: |
0.05 m |
|
Weight: |
1.1 kg |
|
Mounting: |
22 mm tube |
|
Recommended Adapter: |
AA 9203 / AA 9202 |
USLP 9143 B :
| Frequency Range: |
(180) 200 MHz – 7 (8) GHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Material: |
Aluminium |
|
Max Power: |
200 W (<500 MHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.89 m |
|
Width: |
0.78 m |
|
Height: |
0.06 m |
|
Weight: |
1.2 kg |
|
Mounting: |
22 mm tube |
|
Recommended Adapter: |
AA 9203 / AA 9202 |
ESLP 9145 :
| Frequency Range: |
(0.7) 1 – 18 (20) GHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Max Power: |
20 W |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
0.50 m |
|
Width: |
0.24 m |
|
Height: |
0.04 m |
|
Weight: |
0.9 kg |
|
Mounting: |
22 mm tube |
|
Recommended Adapter: |
AA 9203 / AA 9202 |
VUSLP 9111-1000 :
| Frequency Range: |
(0.75) 0.8 – 3 (4) GHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Max Power: |
300 W (1 GHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
46 cm |
|
Width: |
22 cm |
|
Height: |
6.5 cm |
|
Weight: |
0.9 kg |
|
Mounting: |
22 mm tube |
|
Recommended Adapter: |
AA 9203 / AA 9202 |
VUSLP 9111-400 :
| Frequency Range: |
(340) 400 MHz – 3 (4) GHz |
|
Polarisation: |
linear |
|
Pattern Type: |
directional |
|
Max Power: |
300 W (1 GHz) |
|
Connector: |
Type N female |
|
Impedance: |
50 Ω nominal |
|
|
|
|
Length: |
64 cm |
|
Width: |
45 cm |
|
Height: |
7 cm |
|
Weight: |
1.3 kg |
|
Mounting: |
22 mm tube |
|
Recommended Adapter: |
AA 9203 / AA 9202 |
